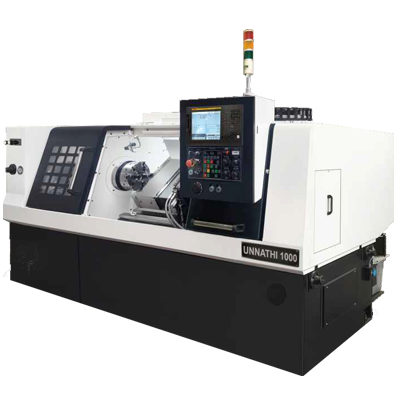

	Unit	UNNATHI-1000
CAPACITY
Distance between centers	mm	1000
Max. turning diameter	mm	300
Max turning length	mm	1000
Swing over bed	mm	500
Swing over carriage	mm	230
MAIN SPINDLE
Spindle nose		A2-6(A2-8)
Bore through spindle	mm	63(86)
Bar capacity **	mm	51(74)
Chuck size	mm	200(250)
Front bearing bore	mm	100(120)
SPINDLE DRIVE
Spindle motor power (cont./30 min Rating)	kW	11/15(15/18.5) (18.5/22)
Speed range	rpm	50-3000
AXES SLIDES
X axis stroke	mm	160
Rapid traverse x axis	m/min	20
Z axis stroke	mm	1040
Rapid traverse z axis	m/min	20
TAILSTOCK
Quill diameter	mm	80
Quill stroke	mm	100
Taper in quill	mm	MT-5
Tailstock body travel	mm	800
TURRET
Turret type		BTP - 80
No. of stations		8
OD turning tool size	mm	25 x 25
Max. boring bar size	mm	40
Weight (approx.)	Kg	4200
Dimension L	mm	2900
Dimension W	mm	1900
Dimension H	mm	1700
CNC SYSTEM Std. / Opt.		FANUC / Siemens or Mitsubishi
