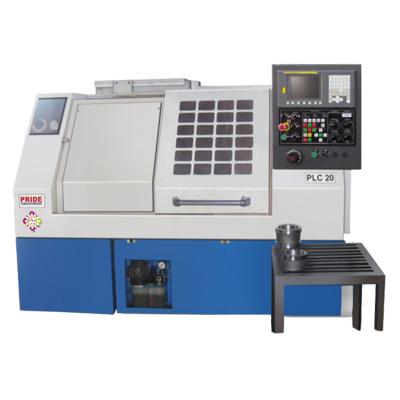

PLC

Go Back
    Description
  • Linear indexing chucker
  • LM guide ways on both axes
  • Large strokes on both X & Z axes

Specifications



Unit

PLC 20

PLC 50

CAPACITY

Distance between centers

mm

NA

NA

Max. turning diameter

mm

150

550

Max turning length

mm

300

300

Swing over bed

mm

550

730

Swing over carriage

mm

180

400

MAIN SPINDLE

Spindle nose

A2-5

A2-8

Bore through spindle

mm

53

86

Bar capacity **

mm

42

74

Chuck size

mm

165/200

315

Front bearing bore

mm

80

120

SPINDLE DRIVE

Spindle motor power (cont./30 min Rating)

kW

5.5/7.5

11/15

Speed range

rpm

50-4000

50-3000

AXES SLIDES

X axis stroke

mm

410

290

Rapid traverse x axis

m/min

20

20

Z axis stroke

mm

300

350

Rapid traverse z axis

m/min

20

20

TURRET

Turret type

Linear Tooling

BTP 100/125

No. of stations

Gang Tooling

8

OD turning tool size

mm

25x25

25X25 / 32x32

Max. boring bar size

mm

40

40/50

Weight (approx.)

Kg

2800

4000

Dimension L

mm

1900

2430

Dimension W

mm

1380

1930

Dimension H

mm

1580

1620

CNC SYSTEM Std. / Opt.

FANUC / Siemens or Mitsubishi
