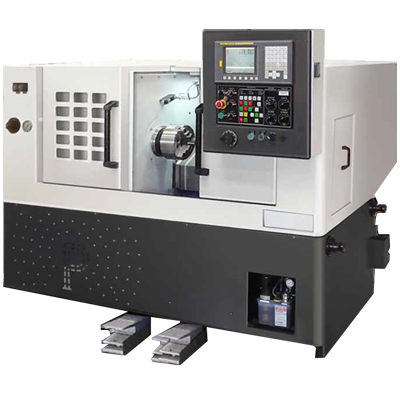

	Unit	ARIES PLUS
CAPACITY
Distance between centers	mm	300
Max. turning diameter	mm	320
Max turning length	mm	220
Swing over bed	mm	460
Swing over carriage	mm	200
MAIN SPINDLE
Spindle nose		A2-6
Bore through spindle	mm	63
Bar capacity **	mm	51
Chuck size	mm	200
Front bearing bore	mm	100
SPINDLE DRIVE
Spindle motor power (cont./30 min Rating)	kW	7.5/11
Speed range	rpm	50-3000
AXES SLIDES
X axis stroke	mm	185/320
Rapid traverse x axis	m/min	30000
Z axis stroke	mm	320
Rapid traverse z axis	m/min	30000
TAILSTOCK
Quill diameter	mm	80
Quill stroke	mm	100
Taper in quill	mm	MT-4
Tailstock body travel	mm	200
TURRET
Turret type		BTP-80
No. of stations		8
OD turning tool size	mm	25x25
Max. boring bar size	mm	40
Weight (approx.)	Kg	2800
Dimension L	mm	2000
Dimension W	mm	1540
Dimension H	mm	1650
CNC SYSTEM Std. / Opt.		FANUC / Siemens or Mitsubishi
