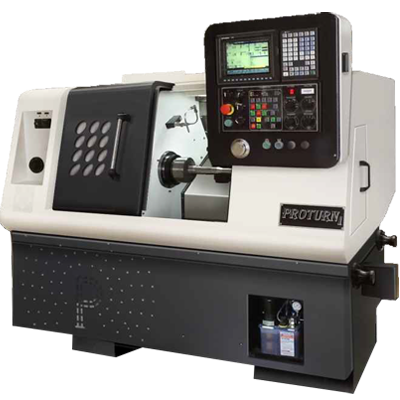

PROTURN-i

Go Back
    Description
  • Very Compact Machine
  • Roller LM guide ways on both axes
  • Bi-directional 8 Stn turret & tailstock as standard feature.

Specifications



Unit

PROTURN

CAPACITY

Distance between centers

mm

280

Max. turning diameter

mm

140

Max turning length

mm

240

Swing over bed

mm

400

Swing over carriage

mm

180

MAIN SPINDLE

Spindle nose

A2-4

Bore through spindle

mm

37

Bar capacity **

mm

25

Chuck size

mm

135

Front bearing bore

mm

75

SPINDLE DRIVE

Spindle motor power (cont./30 min Rating)

kW

3.7/5.5

Speed range

rpm

50-4000

AXES SLIDES

X axis stroke

mm

85

Rapid traverse x axis

m/min

20

Z axis stroke

mm

270

Rapid traverse z axis

m/min

20

TAILSTOCK

Quill diameter

mm

60

Quill stroke

mm

80

Taper in quill

mm

MT-4

Tailstock body travel

mm

260

TURRET

Turret type

BTP-63

No. of stations

8

OD turning tool size

mm

20x20

Max. boring bar size

mm

32

Weight (approx.)

Kg

1800

Dimension L

mm

1775

Dimension W

mm

1350

Dimension H

mm

1480

CNC SYSTEM Std. / Opt.

FANUC / Siemens or Mitsubishi
