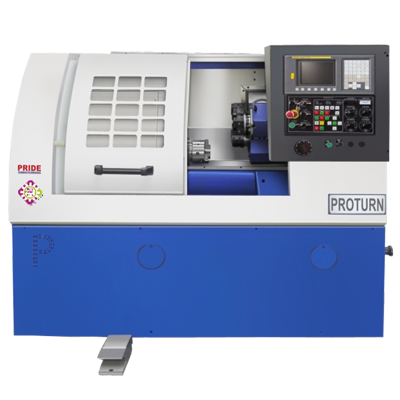

	Unit	PROTURN
CAPACITY
Distance between centers	mm	300
Max. turning diameter	mm	75
Max turning length	mm	200
Swing over bed	mm	340
Swing over carriage	mm	80
MAIN SPINDLE
Spindle nose		A2-4
Bore through spindle	mm	37
Bar capacity **	mm	25
Chuck size	mm	135
Front bearing bore	mm	75
SPINDLE DRIVE
Spindle motor power (cont./30 min Rating)	kW	3.7/5.5
Speed range	rpm	50-4000
AXES SLIDES
X axis stroke	mm	75
Rapid traverse x axis	m/min	20
Z axis stroke	mm	250
Rapid traverse z axis	m/min	20
TAILSTOCK
Quill diameter	mm	50
Quill stroke	mm	50
Taper in quill	mm	MT-4
Tailstock body travel	mm	200
TURRET
Turret type		BTP-50
No. of stations		8
OD turning tool size	mm	20x20
Max. boring bar size	mm	32
Weight (approx.)	Kg	1600
Dimension L	mm	1750
Dimension W	mm	1175
Dimension H	mm	1540
CNC SYSTEM Std. / Opt.		FANUC / Siemens or Mitsubish
