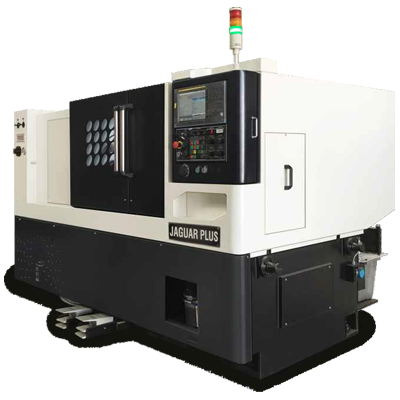

JAGUAR-PLUS

Go Back
    Description
  • Roller LM guide ways on both axes
  • Rigid cartridge type spindle
  • Programmable tailstock quill as a standard feature

Specifications



Unit

JAGUAR-PLUS

CAPACITY

Distance between centers

mm

750

Max. turning diameter

mm

350

Max turning length

mm

700*

Swing over bed

mm

500

Swing over carriage

mm

270

MAIN SPINDLE

Spindle nose

A2-6(A2-8)

Bore through spindle

mm

63(86)

Bar capacity **

mm

51(74)

Chuck size

mm

200(250)

Front bearing bore

mm

100(120)

SPINDLE DRIVE

Spindle motor power (cont./30 min Rating)

kW

11/15(15/18.5)

Speed range

rpm

50-3000

AXES SLIDES

X axis stroke

mm

185

Rapid traverse x axis

m/min

20

Z axis stroke

mm

750

Rapid traverse z axis

m/min

20

TAILSTOCK

Quill diameter

mm

80

Quill stroke

mm

100

Taper in quill

mm

MT-4

Tailstock body travel

mm

TURRET

Turret type

BTP-100

No. of stations

8

OD turning tool size

mm

25 x 25

Max. boring bar size

mm

40

Weight (approx.)

Kg

4000

Dimension L

mm

2800

Dimension W

mm

1900

Dimension H

mm

1700

CNC SYSTEM Std. / Opt.

FANUC / Siemens or Mitsubishi
