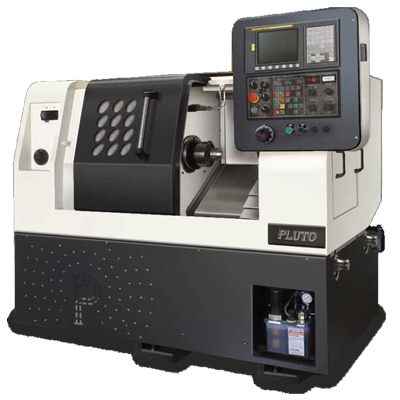

	Unit	PLUTO	PLUTO PLUS
CAPACITY
Standard Turning dia	mm	60	60
Standard Turning length	mm	60	60
Maximum Turning dia	mm	200*	200*
Max turning length	mm	150*	120*
Swing over bed	mm	400	400
MAIN SPINDLE
Spindle nose		A2-4	A2-5
Bore through spindle	mm	37	53
Bar capacity **	mm	25	42
Chuck size	mm	135	165
Front bearing bore	mm	75	80
SPINDLE DRIVE
Spindle motor power (cont./30 min Rating)	kW	3.7/5.5	3.7/5.5
Speed range	rpm	50-4000	50-4000
AXES SLIDES
X axis stroke	mm	240	240
Rapid traverse x axis	m/min	20	30000
Z axis stroke	mm	220	220
Rapid traverse z axis	m/min	20	30000
TURRENT
Turret Type		Linear Tooling	Linear Tooling
No. of stations			8
OD turning tool size	mm	20 x 20	20 x 20
Max. boring bar size	mm	32	32
Weight (approx.)	Kg	1700	1800
Dimension L	mm	1700	1700
Dimension W	mm	1300	1300
Dimension H	mm	1500	1500
CNC SYSTEM Std. / Opt.		FANUC / Siemens or Mitsubishi
