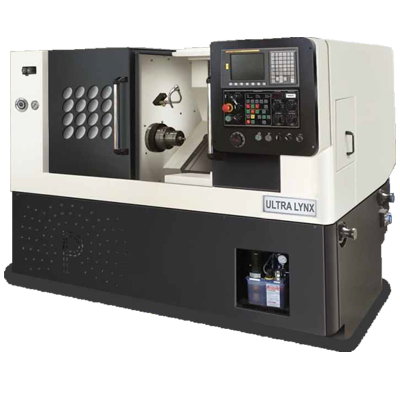

ULTRA LYNX

    Description
  • Rigid cast iron structure
  • LM guide ways on both axes
  • Cartridge type spindle
  • Programmable tailstock quill as a standard feature

Specifications



Unit

ULTRA LYNX

CAPACITY

Distance between centers

mm

400

Max. turning diameter

mm

270

Max turning length

mm

400

Swing over bed

mm

460

Swing over carriage

mm

230

MAIN SPINDLE

Spindle nose

A2-5

Bore through spindle

mm

47

Bar capacity **

mm

25

Chuck size

mm

165

Front bearing bore

mm

80

SPINDLE DRIVE

Spindle motor power (cont./30 min Rating)

kW

5.5/7.5

Speed range

rpm

50-4000

AXES SLIDES

X axis stroke

mm

145

Rapid traverse x axis

m/min

20

Z axis stroke

mm

400

Rapid traverse z axis

m/min

20

TAILSTOCK

Quill diameter

mm

80

Quill stroke

mm

100

Taper in quill

mm

MT-4

Tailstock body travel

mm

280

TURRET

Turret type

BTP-80

No. of stations

8

OD turning tool size

mm

25 x 25

Max. boring bar size

mm

40

Weight (approx.)

Kg

3000

Dimension L

mm

2150

Dimension W

mm

2200

Dimension H

mm

1620

CNC SYSTEM Std. / Opt.

FANUC / Siemens or Mitsubish
