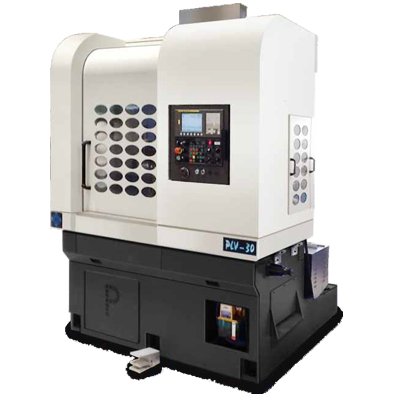

PLV-30

Go Back
    Description
  • LM guide ways on both axes
  • Large strokes on both X & Z axes
  • Ideally suited for machining large diameters

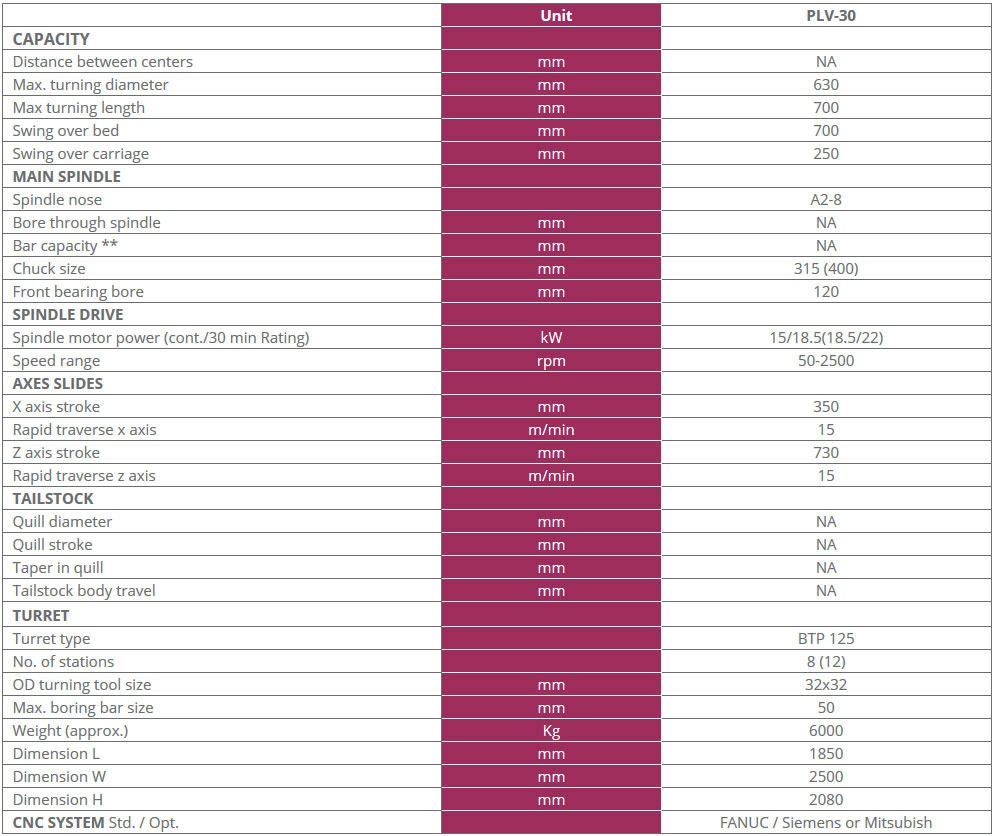

Specifications



Unit

PLV-30

CAPACITY

Distance between centers

mm

NA

Max. turning diameter

mm

630

Max turning length

mm

700

Swing over bed

mm

700

Swing over carriage

mm

250

MAIN SPINDLE

Spindle nose

A2-8

Bore through spindle

mm

NA

Bar capacity **

mm

NA

Chuck size

mm

315 (400)

Front bearing bore

mm

120

SPINDLE DRIVE

Spindle motor power (cont./30 min Rating)

kW

15/18.5(18.5/22)

Speed range

rpm

50-2500

AXES SLIDES

X axis stroke

mm

350

Rapid traverse x axis

m/min

15

Z axis stroke

mm

730

Rapid traverse z axis

m/min

15

TAILSTOCK

Quill diameter

mm

NA

Quill stroke

mm

NA

Taper in quill

mm

NA

Tailstock body travel

mm

NA

TURRET

Turret type

BTP 125

No. of stations

8 (12)

OD turning tool size

mm

32x32

Max. boring bar size

mm

50

Weight (approx.)

Kg

6000

Dimension L

mm

1850

Dimension W

mm

2500

Dimension H

mm

2080

CNC SYSTEM Std. / Opt.

FANUC / Siemens or Mitsubishi
