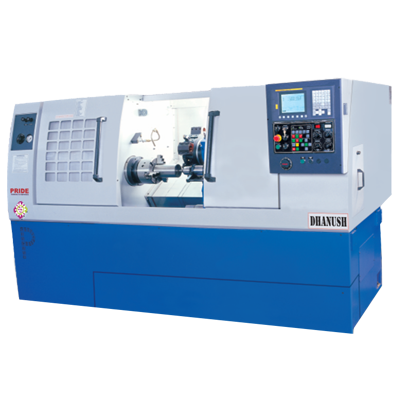

DHANUSH

Go Back
    Description
  • Heavy duty roller LM guide ways on both axes
  • Wide specification to cover large range of applications

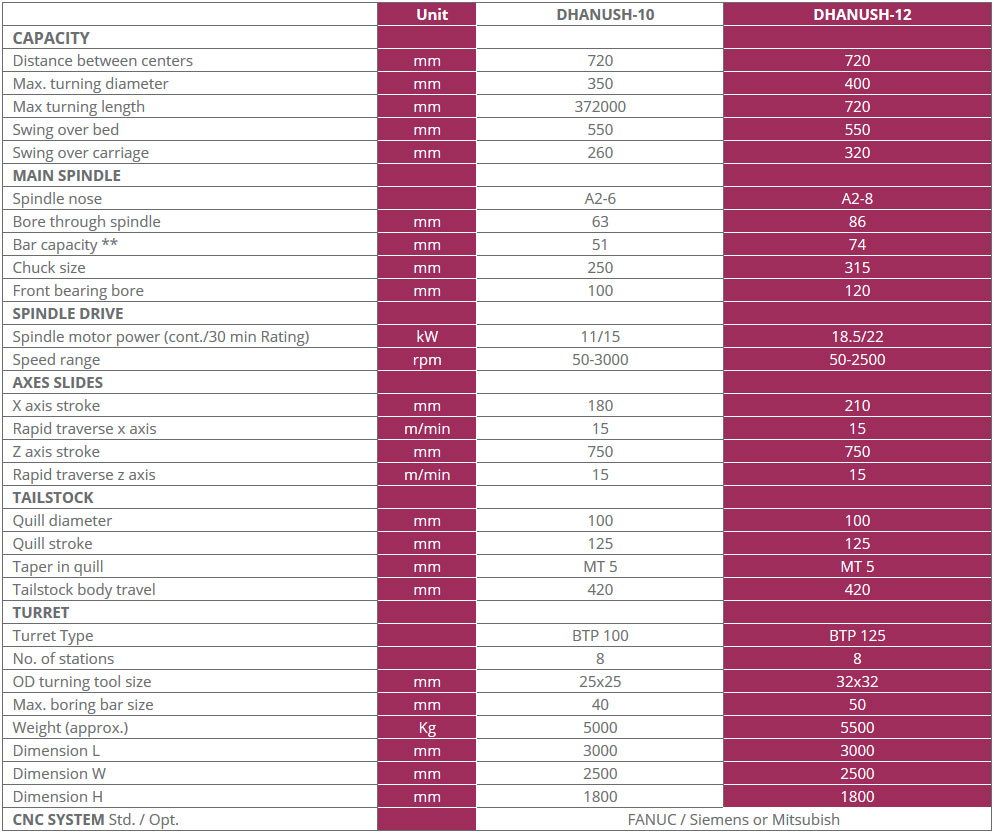

Specifications



Unit

DHANUSH-10

DHANUSH-12

CAPACITY

Distance between centers

mm

720

720

Max. turning diameter

mm

350

400

Max turning length

mm

720

720

Swing over bed

mm

550

550

Swing over carriage

mm

260

320

MAIN SPINDLE

Spindle nose

A2-6

A2-8

Bore through spindle

mm

63

86

Bar capacity **

mm

51

74

Chuck size

mm

250

315

Front bearing bore

mm

100

120

SPINDLE DRIVE

Spindle motor power (cont./30 min Rating)

kW

11/15

18.5/22

Speed range

rpm

50-3000

50-2500

AXES SLIDES

X axis stroke

mm

180

210

Rapid traverse x axis

m/min

15

15

Z axis stroke

mm

750

750

Rapid traverse z axis

m/min

15

15

TAILSTOCK

Quill diameter

mm

100

100

Quill stroke

mm

125

125

Taper in quill

mm

MT 5

MT 5

Tailstock body travel

mm

420

420

TURRET

Turret Type

BTP 100

BTP 125

No. of stations

8

8

OD turning tool size

mm

25x25

32x32

Max. boring bar size

mm

40

50

Weight (approx.)

Kg

5000

5500

Dimension L

mm

3000

3000

Dimension W

mm

2500

2500

Dimension H

mm

1800

1800

CNC SYSTEM Std. / Opt.

FANUC / Siemens or Mitsubish
