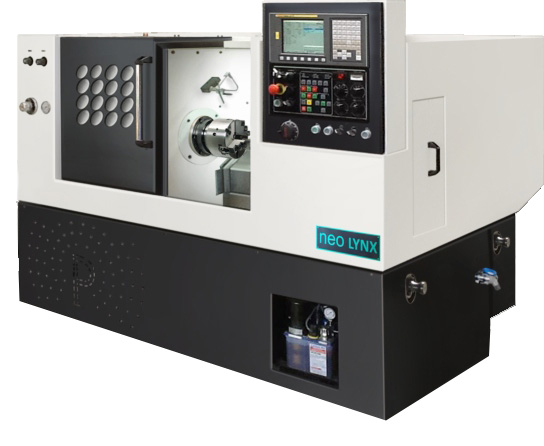

NEO LYNX

    Description
  • X & Z axes with Roller LM. Guideways
  • Telescopic cover for X axis
  • Hydraulic Power Chuck ∅200 mm
  • A. C. Unit for Electrical Cabinet
  • Tail stock with Programmable Quill
  • Automatic centralized Lubrication
  • O.D. Tool Holder clamps (8 No.)
  • Boring bar Holders (4 No.)
  • Axial Tool Holders (2 No.)
  • Set of Sleeves
  • Machine Lighting
  • Coolant System

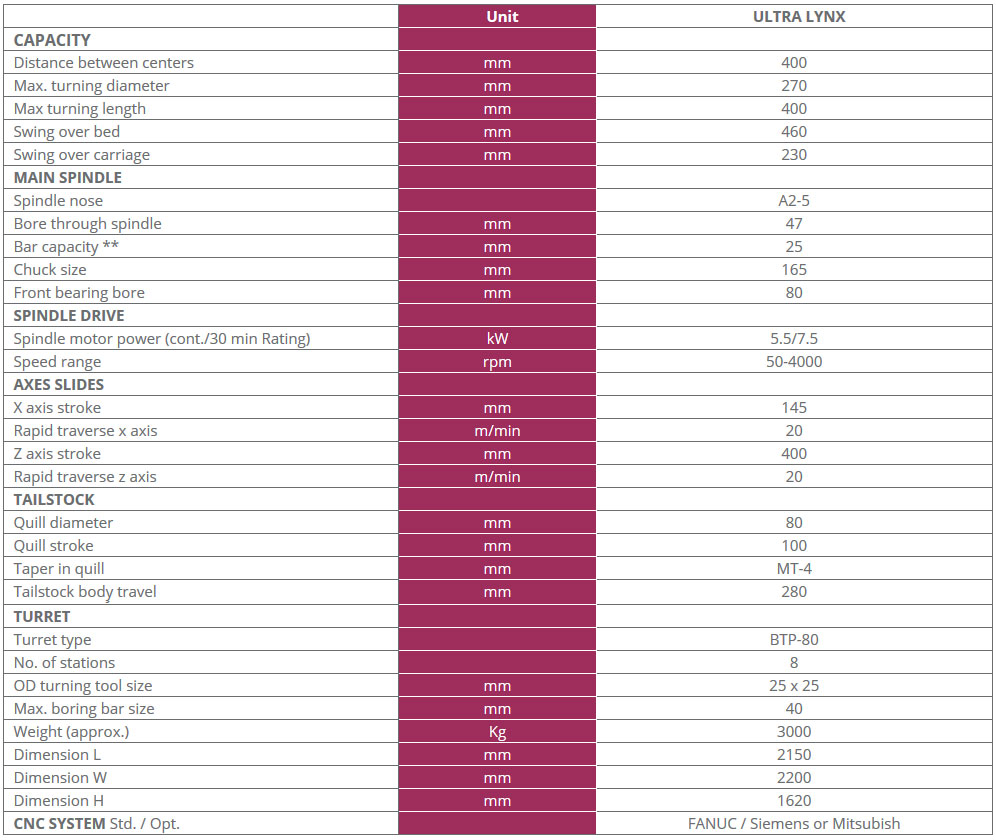

Specifications



Unit

ULTRA LYNX

CAPACITY

Distance between centers

mm

400

Max. turning diameter

mm

320

Max turning length

mm

400

Swing over bed

mm

460

Swing over carriage

mm

230

MAIN SPINDLE

Spindle nose

A2-5

Bore through spindle

mm

47

Bar capacity **

mm

42

Chuck size

mm

200

Front bearing bore

mm

80

SPINDLE DRIVE

Spindle motor power (cont./30 min Rating)

kW

5.5/7.5

Speed range

rpm

50-4000

AXES SLIDES

X axis stroke

mm

180

Rapid traverse x axis

m/min

20

Z axis stroke

mm

400

Rapid traverse z axis

m/min

20

TAILSTOCK

Quill diameter

mm

80

Quill stroke

mm

100

Taper in quill

mm

MT-4

Tailstock body travel

mm

280

TURRET

Turret type

BTP-80

No. of stations

8

OD turning tool size

mm

25 x 25

Max. boring bar size

mm

40

Weight (approx.)

Kg

2700

Dimension L

mm

2000

Dimension W

mm

1535

Dimension H

mm

1650

CNC SYSTEM Std. / Opt.

FANUC / Siemens or Mitsubishi
